LS-8600 infrared PRO UHF DUAL cordless wireless microphone system PLL Rack-Mountable optional muti channel

LS-8600 infrared wireless microphone system

UHF band  top quality  professional  PRO STAGE  dynamics  Infrared synchronization     160 channels selectable    LCD display   dual channel   battery charge

micrófono  mikrofon  microfono mikropon microfoon

LS-8600 infrared  wireless microphone system Brief  Description:

LS-8600 wireless microphone system is a professional dual channel wireless microphone design for users who require professional performance and lower price. The system delivers perfect sound by using low interference UHF frequency band, and it is strong and reliable to meet various usages from small show to home use.

LS-8600 infrared wireless microphone system  Feature:

dual channels muti-frequency wireless microphone

Working at low interference UHF band (500-900MHz)

Pre-set 160 channels, 80channels per channel

LCD display working statue

40MHz frequency bandwidth

Infrared synchronization between receiver and transmitter

RECEIVER

• Carrier Frequency Range: UHF 500~900MHz
• Oscillation Mode: Phase-locked Loop controlled
• Stability: 10PPM
• Switching bandwidth: 40MHz
• Channel spacing: >250kHz
• Sensitivity: 1.5uV @ sinad=12 dB
• Max. Deviation Range: 48KHz
• S/N Ratio: >105dB
• T.H.D.: <0.5% @ 1KHz
• Image rejection: 85 dB  typical
• Spurious rejection: 75 dB  typical
• Frequency Response: 80Hz~15KHz
• Squelch Control:dual-squelch circuit
• Max. Output Level: Balance : 0—300mv, Unbalance : 0—600mv.
• Power Supply: External DC Power Supply, 0.64, 12~15V DC
• Dimensions (m/m): 210(L)*45(H)*185(D)
• Weights (Kg): 3

TRANSMITTER(HANDHELD)

• Transmitter power: 10mW
• Spurious emission: <60dB(with carrier)
• Battery voltage: 1.5v*2
• Battery life: 8 hours

PLL UHF infrared handheld choosing:

rechargable handheld for fixed or infrared :

If  charged handheld ,you can choose:

body pack with handheld charger

                                                                                 boady pack charger

  one handheld charger

                                                                                           two handheld charger

And we have silimar models, maybe you are also  interested in :

975 infrared wireless microphone system:

970 infrared wireless microphone system :

5000 UHF wireless microphone system:

7410 UHF wireless microphone system:

7600 UHF wireless microphone system:

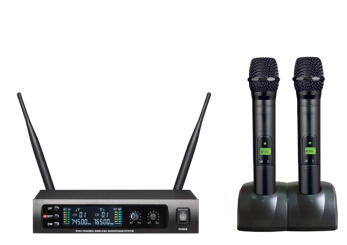

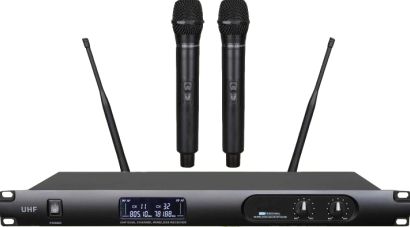

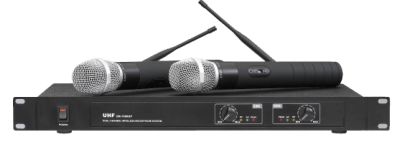

LS-8600 infrared PRO UHF DUAL cordless wireless microphone system PLL Rack-Mountable optional muti channel Images
